Transmission Installation Guide for Holden & Ford V8 Vehicles

Installing a new transmission in a Holden Commodore or Ford Falcon is one of the most rewarding upgrades you can make to a V8-powered vehicle, but it is also one of the most detail-sensitive. Whether you are fitting a Turbo 350 behind a Holden 308, bolting a C4 to a Ford Cleveland, or swapping a Turbo 700 into an early VB-VK Commodore, the fundamentals remain the same: preparation, correct parts matching, and careful assembly. This guide walks you through the best practices Australian enthusiasts and professional builders follow to get the job done right the first time.

1. Choose the Right Transmission for Your Engine

A transmission swap is the process of replacing a vehicle's existing gearbox with a different unit, often to gain strength, additional gears, or better shift quality. Selecting the correct transmission depends on your engine type, power output, and intended use.

Holden V8 Options

For Holden 308 and 304 V8 engines, the most popular automatic choices are the GM Turbo 350, Turbo 400, and Turbo 700. The TH350 is suitable for both Big Block and Small Block Chevy engine applications and is a proven performer in Holden Commodores from the VB through to VK. For higher-power builds, the TH400 platform handles serious power with billet 300M input shaft upgrades and is ideal for turbo or supercharged applications.

Ford V8 Options

For Ford Windsor and Cleveland engines, the C4 and C6 automatic transmissions remain the go-to choices. The Ford C4 automatic transmission comes in two main variants: the Windsor-style C9 (case fill) and the Cleveland-style C10 (pan fill). The Ford C6 automatic transmission offers greater torque capacity with less complexity and is ideal for drag racing, F100 builds, and Mustang cruisers.

Holden & Ford Transmission Comparison

2. Critical Pre-Installation Checks

A pilot bearing is a small bushing or bearing that supports the tip of the transmission input shaft inside the crankshaft. According to transmission fitment specialists at Bowler Performance, destroyed transmissions and clutch-release failures have been traced back to a forgotten or incorrectly sized pilot bushing.

Before you begin, confirm these items:

• Pilot bearing or bushing: Verify it is installed and correctly sized for your input shaft.
• Flywheel/flexplate balance: Ford used three different engine balances over the years, so confirm your crank, flywheel, and harmonic balancer all match. This is especially important for Holden 304 and 308 performance upgrades using aftermarket stroker kits.
• Transmission fluid type and quantity: Use the manufacturer-specified ATF for your unit.
• Crossmember and mount compatibility: Ensure your transmission mount aligns with the chassis.

3. Bellhousing Alignment & Fitment

A bellhousing is the housing that connects the engine block to the transmission, enclosing the flywheel or flexplate and torque converter. Proper alignment here is non-negotiable. As noted by Modern Driveline, the registration opening in the bellhousing must be aligned with the crank to within 0.010 inches of total run-out.

For Ford applications, pay close attention to the bellhousing bolt pattern. The Ford C6 transmission comes with three different front bellhousings to suit the 351 Windsor/Cleveland, 460 Big Block, and FE 390/428 Big Block. Selecting the wrong bellhousing will prevent the transmission from mating to your engine.

4. Torque Converter & Flexplate Selection

Matching your torque converter stall speed and flexplate tooth count to your engine and transmission combination is critical. For Holden builds, Total Performance offers Turbo 700 transmission kits with matched stall converters, TV cables, and trans coolers designed for easy retrofit into early VB-VK Commodores.

For Ford C4 transmissions, the Windsor-style C9 will only accept the 157-tooth flexplate, while the Cleveland-style C10 uses a larger pattern. Installing the wrong flexplate leads to starter engagement failure and potential ring-gear damage.

5. Step-by-Step Installation Process

Removing the Old Transmission

Drain the fluid, disconnect the driveshaft, speedo cable, shift linkage, and any electrical connectors. Support the transmission with a jack, remove the crossmember bolts, then carefully lower the unit. Always mark the driveshaft orientation before removal.

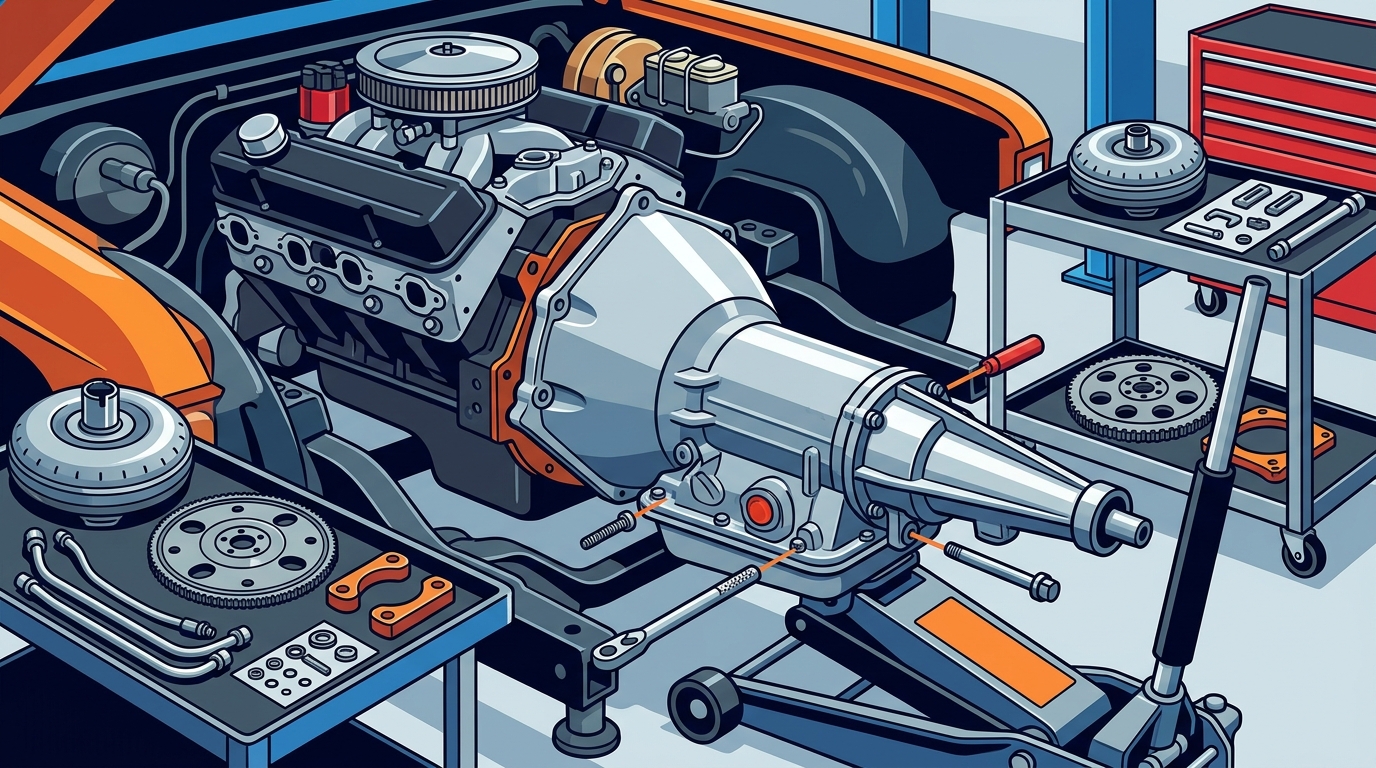

Fitting the New Transmission

Use alignment dowels (two long headless bolts threaded into the bellhousing) to guide the new transmission into position. This technique prevents the input shaft from hanging on the clutch disc or torque converter hub. Jack the transmission up, catch the dowels, then slide forward until fully seated. Never draw the transmission in using the bellhousing bolts alone, as this can crack the case.

Connecting Ancillaries

Reattach the driveshaft, speedo drive, shift linkage, kickdown or TV cable, and transmission cooler lines. For electronically controlled units, connect the wiring harness and ensure the vacuum modulator (on Turbo 400 transmissions) is properly adjusted for your desired shift firmness.

6. Fluid Fill, Testing & Break-In

Fill the transmission with the correct ATF to the specified level. Start the engine, cycle through all gears with the brakes applied, then recheck the fluid level at operating temperature. Take a thorough road test to verify shift quality, engagement, noise, and confirm there are no leaks or diagnostic trouble codes.

For high-performance builds using a TCI StreetFighter or Super StreetFighter transmission, the constant pressure valve body ensures clutches and bands are applied firmly on the shift to eliminate slippage. Bed in the clutches with moderate driving for the first 500 km before spirited use.

7. Common Mistakes to Avoid

• Forcing the transmission onto the engine: If it will not seat, the input shaft splines may be misaligned. Rotate the converter or output shaft and try again.
• Skipping bellhousing run-out checks: Even 0.015 inches of misalignment causes premature input shaft bearing and seal wear.
• Using the wrong fluid: GM transmissions typically require Dexron III/VI, while Ford units may need Mercon or Type F depending on the application.
• Forgetting the torque converter bolts: Always confirm the converter is fully seated (three distinct clicks on most GM units) before mating the transmission.
• Ignoring the transmission cooler: High-performance V8s generate significant heat. A dedicated cooler with at least 20,000 GVW capacity is recommended for street/strip use.

Key Takeaways

• Match the transmission to your engine type, power level, and intended use before purchasing.
• Always verify pilot bearing fitment, flywheel balance, and bellhousing alignment before installation.
• Use alignment dowels to guide the transmission into position and never draw it in with bolts alone.
• Select the correct flexplate tooth count, especially on Ford C4 Windsor vs Cleveland variants.
• Fill with the manufacturer-specified ATF and road-test thoroughly for shift quality and leaks.
• Invest in a quality transmission cooler for any high-performance V8 application.
• Contact specialists like Total Performance Australia for expert advice on parts matching.

Frequently Asked Questions

What transmission fits a Holden 308 V8?

The most common choices are the GM Turbo 350, Turbo 400, and Turbo 700 (700R4). The TH350 suits mild street builds up to 575-775 HP, while the TH400 handles 1,000+ HP for drag and turbo applications. The Turbo 700 adds a fourth overdrive gear for highway cruising.

Can I fit a Turbo 700 into an early VB or VK Commodore?

Yes. The Turbo 700 is a popular transmission swap from VN/VP V8 Commodores into earlier VB, VC, VH, and VK models. Pre-built kits with matched torque converters and TV cables make this retrofit straightforward.

Which Ford C4 transmission do I need: C9 or C10?

The C9 (case fill) suits Ford Windsor engines and uses the 157-tooth flexplate. The C10 (pan fill) suits Ford Cleveland engines and uses a larger bellhousing. Check whether your dipstick enters the case or the pan to identify your variant.

How do I check bellhousing alignment?

Attach a magnetic-base dial indicator to the flywheel, then measure the inside edge of the bellhousing registration opening as you rotate the engine. Total run-out should not exceed 0.010 inches.

What transmission fluid should I use?

GM-based transmissions (TH350, TH400, T700) typically require Dexron III or Dexron VI ATF. Ford C4 and C6 transmissions may require Mercon or Type F, depending on the valve body and clutch material. Always confirm with the transmission manufacturer.

Do I need a transmission cooler?

For any performance V8 application, a dedicated transmission cooler is strongly recommended. High-stall torque converters and aggressive shift patterns generate extra heat that the factory radiator cooler cannot manage alone.

Where can I buy built transmissions in Australia?

Total Performance Australia stocks built TH350, TH400, Turbo 700, Ford C4, and Ford C6 transmissions from brands like TCI and Transmission Specialties. They are located at 1/10 Brand Drive, Thomastown VIC 3074, and ship Australia-wide with free delivery over $200.

Should I choose automatic or full manual valve body?

For street driving, an automatic valve body with firmer shifts is ideal. For drag racing or high-power builds, a full manual reverse-pattern valve body with transbrake provides maximum control and higher line pressures to protect bands and clutches.
