Choosing the right transmission for a Ford V8 is one of the most important decisions you will make during a performance build. The transmission must match your engine output, intended use, and rear-end ratio to deliver reliable, consistent power to the wheels. Whether you are building a weekend cruiser around a 302 Windsor or pushing serious horsepower through a 351 Windsor stroker, the transmission you select will shape every aspect of the driving experience. This guide walks you through the key Ford automatic transmissions, explains what factors matter most, and shows you where to find the right parts in Australia.
Overview of Popular Ford Automatic Transmissions
Ford produced several rear-wheel-drive automatic transmissions that remain popular in the Australian performance scene. The three most common platforms for V8 builds are the C4, C6, and AOD (including its successor, the 4R70W). Each has distinct strengths depending on your power level and driving goals.
A transmission is a mechanical device that uses a set of gears to change speed, torque multiplication, and direction of rotation between the engine and the driven wheels. For Ford V8 owners in Australia running Windsor or Cleveland engines, selecting from these proven platforms simplifies sourcing parts and getting expert support. Total Performance Australia stocks a full range of Ford transmission parts, including C4, C6, and torque converter options for Windsor and Cleveland engines.

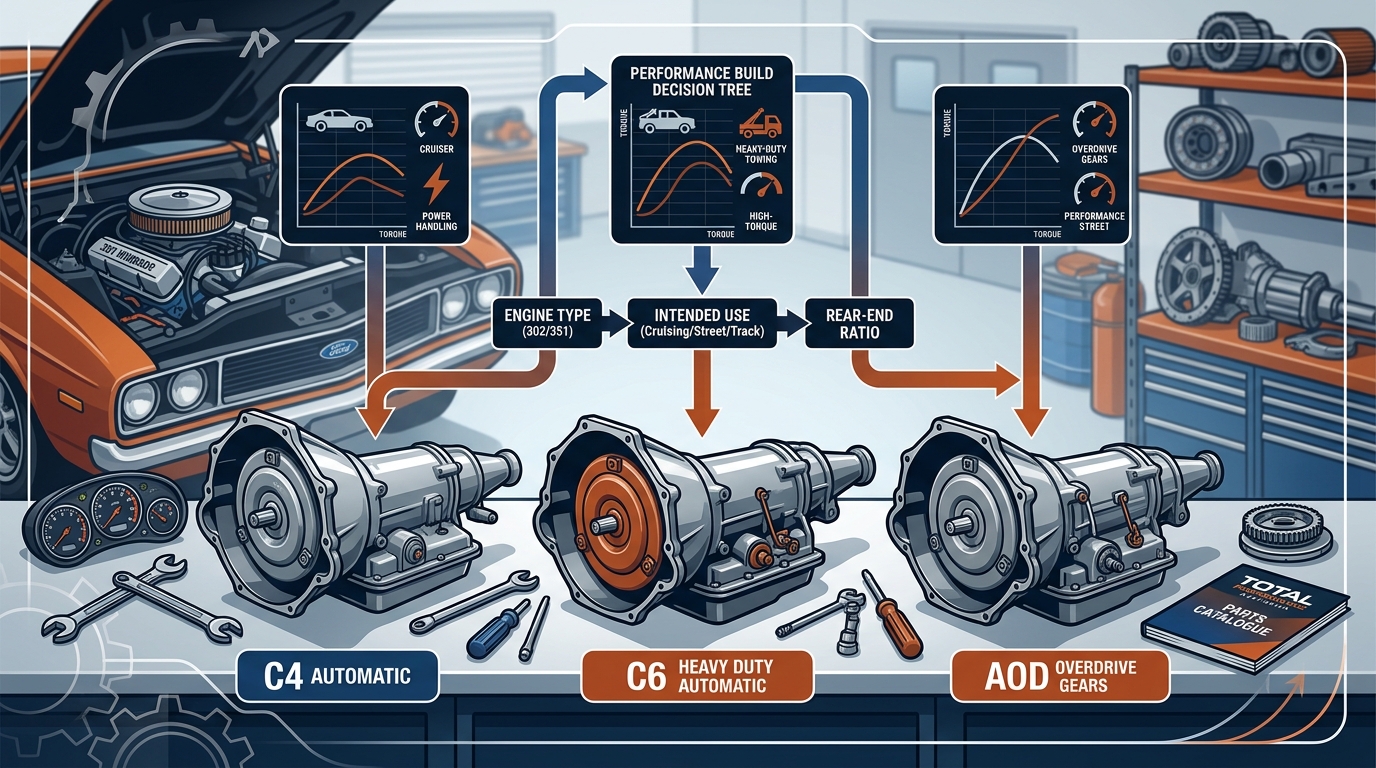

Key Factors When Choosing a Ford Transmission
Power Output and Torque Rating
Your engine's peak horsepower and torque figures should be the starting point. A mild 302 Windsor making 300 hp is perfectly served by a C4. A built 351 Windsor stroker making 500+ hp needs a C6 or a reinforced AOD. Exceeding a transmission's torque capacity leads to premature failure of clutch packs and bands.
Intended Use
Street cruisers benefit from overdrive transmissions like the AOD or 4R70W, which reduce highway RPM by roughly 30 percent in top gear. Dedicated drag cars and track vehicles often favour the lighter, more direct C4 or the robust C6. Think about how you will actually drive the car 90 percent of the time.
Rear-End Ratio Compatibility
Your diff ratio and transmission gear spread must work together. Running a 3.73:1 rear end with an AOD's 0.67:1 overdrive effectively gives you a 2.50:1 cruising ratio, ideal for highway comfort without sacrificing launch performance. Pairing the same diff ratio with a three-speed C4 means high RPM at highway speeds.
Ford C4: The Lightweight Classic
The Ford C4 is a three-speed automatic transmission that was produced from 1964 to 1981. It was designed as a lighter, simpler replacement for the Ford-O-Matic and found widespread use in Falcon, Fairlane, and Mustang models. At roughly 110 lbs without fluid, it is the lightest Ford automatic, making it a favourite for drag racing and light street builds.
The C4 bolts directly to 289, 302, and 351 Windsor engine blocks using the small-block Ford bellhousing pattern. Total Performance carries a complete selection of C4 transmission parts and torque converters suited to both Windsor and Cleveland applications. Its simplicity means fewer internal components to fail, and aftermarket upgrade options are abundant.
Ford C6: Heavy-Duty Workhorse
The Ford C6 is a three-speed heavy-duty automatic built to handle big-block torque. Weighing about 140 lbs dry, it is heavier than the C4 but substantially stronger. The C6 was factory-fitted behind 351 Cleveland, 351 Windsor, and 429/460 big-block Ford engines, and it remains a proven choice for high-horsepower builds.
For Australian builders working on Ford Falcon V8 projects, the C6 offers a direct bolt-in solution. Browse Ford C6 transmissions and torque converters at Total Performance for units rated to handle serious power. Pair it with a quality Ford Windsor stroker kit for a complete high-performance drivetrain.
Ford AOD and 4R70W: Overdrive Comfort
The AOD (Automatic Overdrive) is a four-speed automatic transmission Ford introduced in 1980 to improve fuel efficiency without sacrificing performance. It replaced the aging C4 and C6 in many passenger car and light-truck applications. The AOD uses a unique split-input shaft design and offers a 0.67:1 overdrive fourth gear.
The AOD was later refined into the electronically controlled AODE and then the 4R70W, which brought improved shift programming and higher torque capacity. A torque converter is a fluid coupling device that transfers and multiplies engine torque into the transmission, and selecting the correct stall speed is essential when upgrading to an AOD or 4R70W. For Coyote engine swaps, Total Performance also stocks 6R80 torque converters for Gen 3 applications.
| Feature | C4 | C6 | AOD / 4R70W |
|---|---|---|---|
| Speeds | 3 | 3 | 4 (overdrive) |
| Weight (dry) | ~110 lbs | ~140 lbs | ~150 lbs |
| Overall Length | ~27.75 in | ~28.5 in | ~30.75 in |
| Best For | Light builds, drag | High-HP street/strip | Street cruising, touring |
| Overdrive | No | No | Yes (0.67:1) |
| Engine Compatibility | 289, 302, 351W | 351W/C, 429, 460 | 289, 302, 351W |
Matching Your Torque Converter
A torque converter is a fluid coupling that sits between the engine and transmission, and its stall speed determines at what RPM the converter locks and begins transferring full power. Choosing the wrong stall speed leaves performance on the table or creates excessive heat.
For a mild street 302, a converter stalling at 1,800 to 2,200 RPM works well. Aggressive cam profiles and higher-horsepower engines need converters stalling at 2,800 RPM or higher to allow the engine to reach its powerband before loading the drivetrain. Total Performance stocks torque converters for Ford C4, C6, and AOD transmissions from leading brands, with expert advice to match your specific combination.
Key Takeaways
- Match your transmission choice to your engine's horsepower and torque output to avoid premature failure.
- The Ford C4 is ideal for lightweight drag and mild street builds under 400 hp.
- The Ford C6 handles big-block torque and high-horsepower stroker engines reliably.
- The AOD and 4R70W add overdrive for lower highway RPM and better fuel economy.
- Torque converter stall speed must align with your camshaft profile and power curve.
- Rear-end gear ratio and transmission gear spread must be considered together for optimal performance.
- Total Performance Australia offers expert advice and free delivery over $200 on Ford transmission parts shipped Australia-wide.
Frequently Asked Questions
What Ford transmission is best for a 302 Windsor street car?
For a street-driven 302 Windsor making under 400 hp, the C4 is a proven and affordable choice. If you want overdrive for highway cruising, the AOD or 4R70W is the better option, offering a 0.67:1 fourth gear that significantly reduces cruising RPM.
Can I bolt a C4 transmission to a 351 Windsor?
Yes. The C4 shares the same small-block Ford bellhousing bolt pattern as the 289, 302, and 351 Windsor. However, if your 351W build makes over 400 hp, consider upgrading internal components or stepping up to a C6 for durability.
What is the difference between the AOD and the 4R70W?
The AOD is a mechanically controlled four-speed overdrive automatic produced from 1980 to 1993. The 4R70W is its electronically controlled successor, offering improved shift quality and higher torque capacity through updated internals and electronic solenoid controls.
How do I choose the right torque converter stall speed?
Stall speed should match where your engine begins making peak torque. Mild street cams pair well with 1,800 to 2,200 RPM stall converters. Aggressive cams and higher-output engines typically need 2,800 RPM or higher to let the engine reach its powerband efficiently.
Does Total Performance ship Ford transmission parts Australia-wide?
Yes. Total Performance Australia ships from Melbourne with free delivery on orders over $200. They stock C4, C6, AOD, and 6R80 torque converters, flexplates, bellhousings, and transmission accessories for Ford V8 applications.
Is the C6 transmission too heavy for a street car?
At roughly 140 lbs dry, the C6 is about 30 lbs heavier than a C4. For most street cars, that weight penalty is negligible compared to the strength advantage. If you are building a dedicated weight-sensitive drag car, the C4 may be the better pick.
What rear-end ratio works best with an AOD transmission?
A 3.50:1 to 3.73:1 rear-end ratio pairs well with the AOD's overdrive. The 0.67:1 fourth gear effectively converts a 3.73 ratio into a cruising-friendly 2.50:1, giving you strong acceleration in the lower gears and relaxed highway RPM in overdrive.
